The AH-1 Cobra: From Vietnam to the Modern Viper
Long, narrow and heavily armed, the AH-1 Cobra looks like a weapon even while sitting motionless on the ground.
Its tandem cockpit places the pilot and gunner along the aircraft’s centerline. Short wings carry rockets and missiles, while a rotating gun turret sits beneath the nose. Unlike the utility helicopters from which it evolved, the Cobra was designed for one purpose: finding and destroying enemy forces.
The United States Army introduced the original AH-1 during the Vietnam War, but the Marine Corps quickly recognized its value. Marines needed a fast attack helicopter that could escort troop-carrying aircraft, protect landing zones and provide close-air support from amphibious ships.
That requirement began a Marine Cobra lineage lasting more than five decades—from the first SeaCobras over Vietnam to the modern AH-1Z Viper.
Gunships Before the Cobra
Helicopters entered the Vietnam War primarily as transportation aircraft.
Utility helicopters carried troops into landing zones, evacuated casualties and delivered supplies. Their ability to move above jungles, rivers and mountains transformed battlefield mobility.
They were also extremely vulnerable.
Enemy troops quickly learned to concentrate fire on helicopters approaching landing zones. Door gunners fired back with machine guns, while some utility helicopters were modified to carry rockets and additional weapons.
These improvised gunships helped protect transport helicopters, but they had serious limitations. Weapons, ammunition and armor added weight to aircraft originally designed to carry troops and cargo. As the helicopters became heavier, their performance declined.
The military needed a helicopter designed specifically for attack missions.
Bell Helicopter responded by combining components from its successful UH-1 Huey with a completely new fuselage. The result was the AH-1 Cobra.
Built Around a Narrow Fuselage
The Cobra’s appearance was unlike that of the wide-bodied Huey.
Instead of placing the crew beside each other, Bell positioned the gunner in the front and the pilot behind and above him. This tandem arrangement made the helicopter’s fuselage extremely narrow, reducing the target it presented to enemy gunners.
The raised rear seat gave the pilot better forward visibility over the gunner’s position.
Small wings mounted on each side of the aircraft carried rocket pods, gun pods and, on later models, guided missiles. The wings also produced some lift during forward flight, reducing strain on the main rotor.
A movable turret beneath the nose allowed the gunner to engage targets without pointing the entire helicopter at them.
The original Army AH-1G used many components from the UH-1, including its engine, transmission and rotor system. This shortened development time and simplified maintenance.
The first prototype flew in September 1965. The Army began using Cobras in Vietnam in 1967.
The Cobra Goes to War
Army Cobras escorted troop-carrying helicopters, attacked enemy positions and provided close fire support to soldiers on the ground.
The aircraft could arrive quickly, circle a contested landing zone and attack with rockets, grenades and machine-gun or cannon fire. Its speed and narrow profile made it more difficult to hit than modified utility helicopters.
The Cobra demonstrated that a purpose-built attack helicopter could survive and fight in conditions that placed transport helicopters at great risk.
Marine aviators saw the same potential, but the Corps required an aircraft better suited for operations from ships and remote expeditionary bases.
The Marines wanted two engines.
Flying over water with a single-engine helicopter created obvious danger. A twin-engine aircraft provided additional power and a better chance of surviving an engine failure during operations at sea.
That requirement produced the AH-1J SeaCobra.
The Marine Corps SeaCobra
The AH-1J was the first twin-engine production version of the Cobra.
It used two turboshaft engines connected through a combined gearbox. The additional engine improved performance and provided greater safety during operations from amphibious ships.
The SeaCobra also received a more powerful three-barrel 20mm cannon mounted beneath the nose. The weapon gave Marine aviators substantially greater firepower than the machine-gun and grenade-launcher systems carried by early Cobras.
The first AH-1Js entered Marine Corps service during the early 1970s and saw combat before the end of the Vietnam War.
Marine SeaCobras flew escort and close-air-support missions, protecting helicopters and attacking enemy troops, vehicles and defensive positions. They could operate from land bases or launch from Navy amphibious ships offshore.
The aircraft gave Marine commanders a gunship that could deploy with the same amphibious forces it was expected to protect.
Part of the Marine Air-Ground Team
The Cobra found a natural place inside the Marine Air-Ground Task Force.
Marine infantry did not have to depend entirely on distant air bases for armed helicopter support. Cobras could travel aboard the same ships carrying the landing force and operate from temporary sites ashore.
During an amphibious assault, Cobras could move ahead of transport helicopters, search for enemy positions and attack threats near the landing zone. They could then remain nearby to support Marines after they reached the ground.
The aircraft also worked closely with the UH-1 Huey.
Hueys frequently carried commanders, reconnaissance teams, supplies and casualties. Some served as armed command-and-control aircraft. Cobras provided heavier firepower and escorted the Hueys into dangerous areas.
The partnership became known throughout the Corps as the “HMLA team,” referring to Marine light attack helicopter squadrons that eventually operated both aircraft types.
Later generations of the Cobra and Huey would continue flying together.
The AH-1T Improved SeaCobra
The Marine Corps needed more power, range and weapons capacity than the early AH-1J could provide.
The next major version was the AH-1T Improved SeaCobra.
The AH-1T received an extended fuselage, upgraded engines, a stronger transmission and a larger rotor system. These changes allowed it to carry more fuel and weapons while operating in hot conditions or at higher elevations.
The improved aircraft could also carry the BGM-71 TOW antitank missile.
TOW stood for Tube-launched, Optically tracked, Wire-guided. After launch, thin wires trailed behind the missile and transmitted steering commands from the aircraft.
The gunner kept the sight centered on the target while the guidance system corrected the missile’s flight. The weapon allowed the Cobra to destroy tanks and fortified positions from a distance.
TOW-equipped Cobras gave Marine amphibious forces a powerful defense against enemy armor.

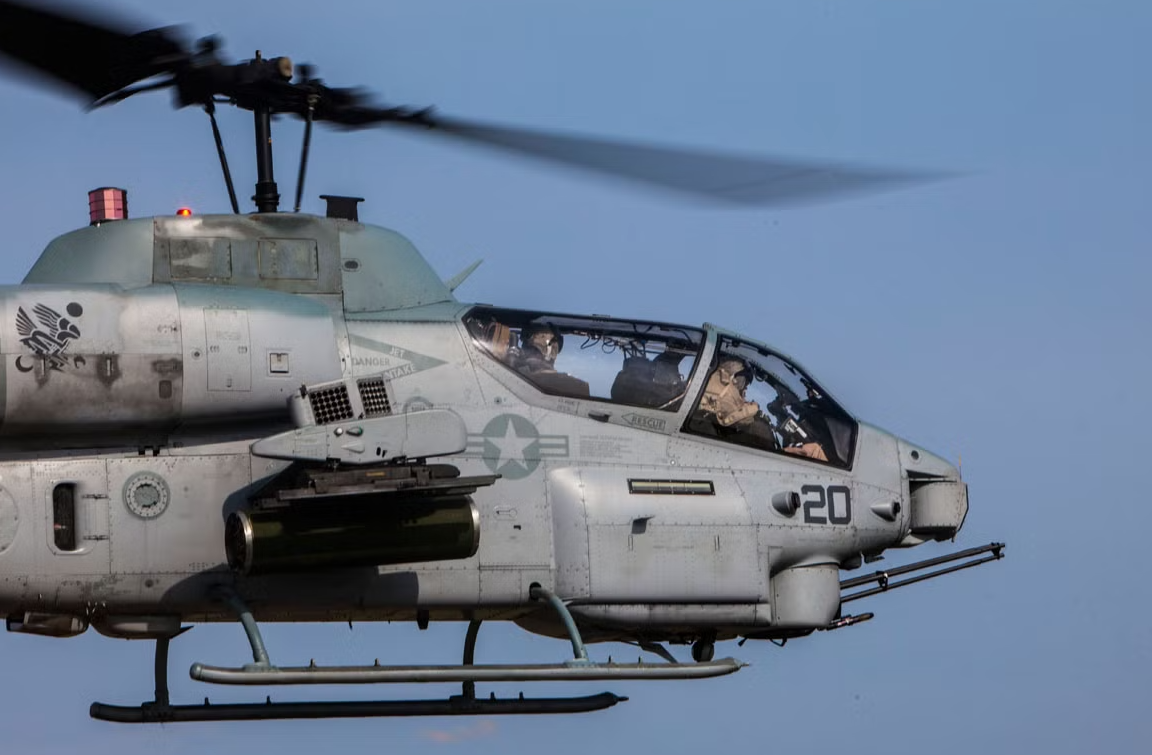

The AH-1W SuperCobra
The next version became one of the longest-serving and most recognizable Marine attack helicopters.
The AH-1W SuperCobra entered service during the 1980s. It was powered by two General Electric T700 engines, providing substantially more power than earlier SeaCobras.
The SuperCobra retained the three-barrel 20mm cannon and could carry a wide selection of weapons, including:
* 70mm rockets
* TOW antitank missiles
* AGM-114 Hellfire missiles
* AIM-9 Sidewinder air-to-air missiles
* Gun pods and other specialized weapons
The Hellfire gave the SuperCobra a modern laser-guided weapon capable of destroying armored vehicles and fortified targets from several miles away.
Sidewinder missiles provided a limited ability to engage enemy aircraft and helicopters.
The SuperCobra could also carry unguided rockets with different warheads for attacking personnel, vehicles, buildings and defensive positions.
This flexibility allowed Marine crews to configure the aircraft for the mission rather than carry the same weapons on every flight.
##
